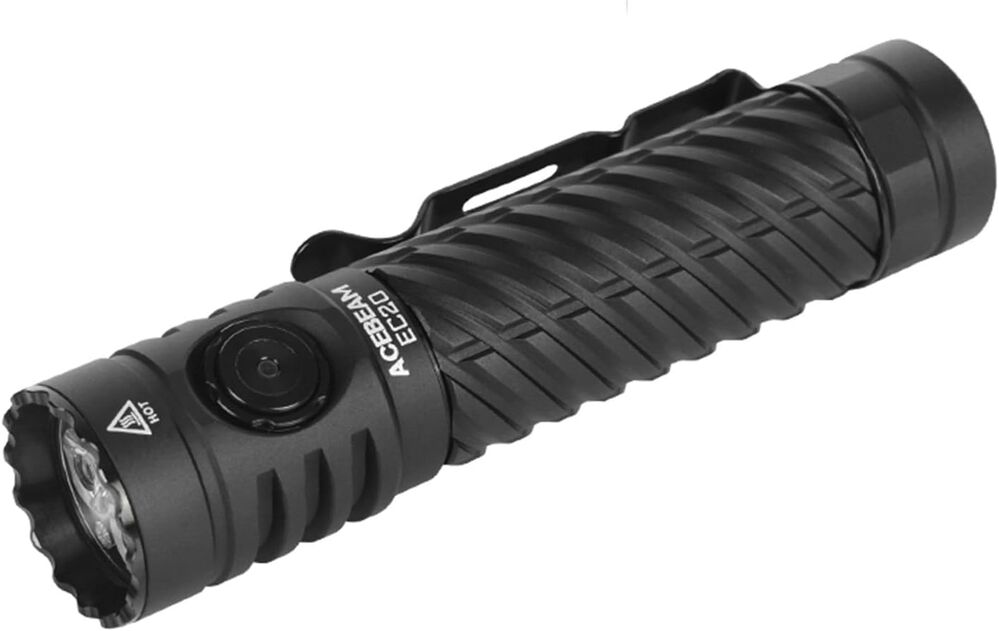

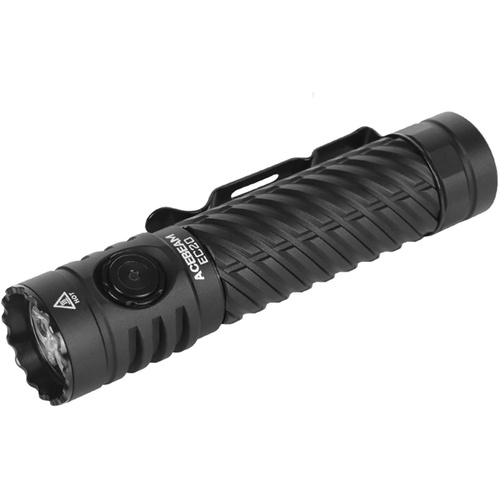

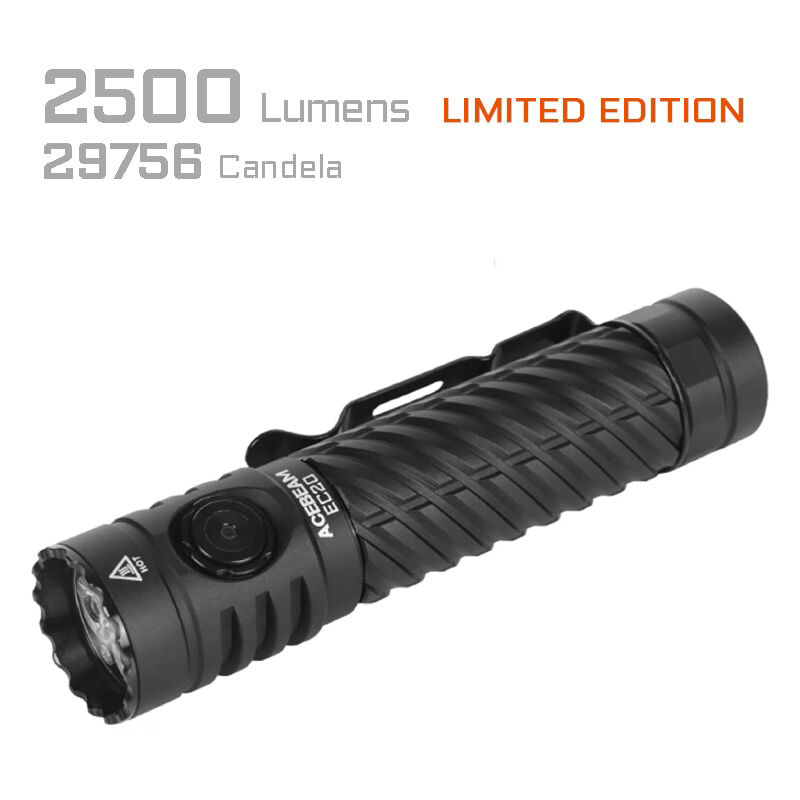

The EC20 is a portable EDC flashlight with a maximum output of 2800 lumens. It offers three premium LED options and excellent performance, powerful throw up to 370 meters. The AUX light excels in creating an ambiance for outdoor activities like camping. The dual fuel design supports rechargeable 18650 and CR123A batteries, catering to different power needs in various environments. The EC20 comes with a one-way clip and a magnetic tail cap, providing multiple carrying options. Additionally, the knurled milling pattern ensures a secure grip.



DETAILS

• Compact and portable
• LED options :
  -    SFT-25R LEDs, max 2,500 lumens with a beam distance up to 370 meters
  -    XP-LR LEDs, max 2,900 lumens with a beam distance up to 381 meters
  -    Nichia 519A LEDs CRI > 90, max 1,900 lumens with a beam distance up to 270 meters
  -    LUXEON HL4X 6500K LEDs, max 2,800 lumens with a beam distance up to 310 meters

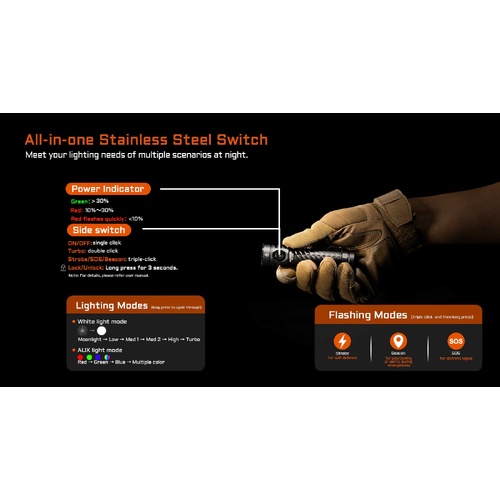

• All-in-one stainless steel switch controls all and is easy to operate even while wearing gloves
• Three dimming modes available：
  Mode 1: Low → Med 1 → Med 2 → High → Low
  Mode 2: High → Med 2 → Med 1 → Low → High
  Mode 3: Stepless dimming
• Auxiliary lights (Red - Blue - Green- Multiple colors)
• 6 white brightness levels, Strobe, SOS, and Beacon cater to your lighting needs in various scenarios
• Adopts highly efficient constant circuit (Non-PWM) guarantees a comfortable visual experience

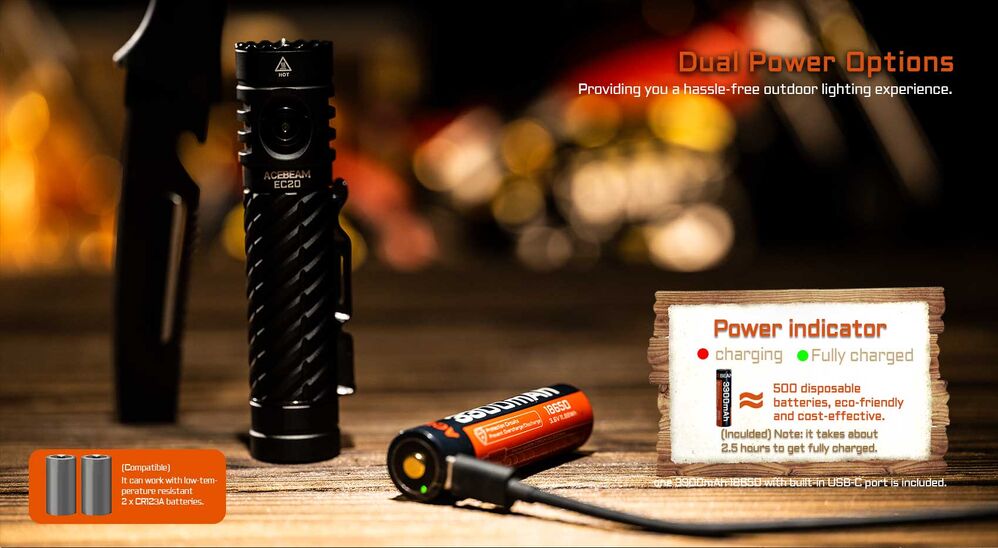

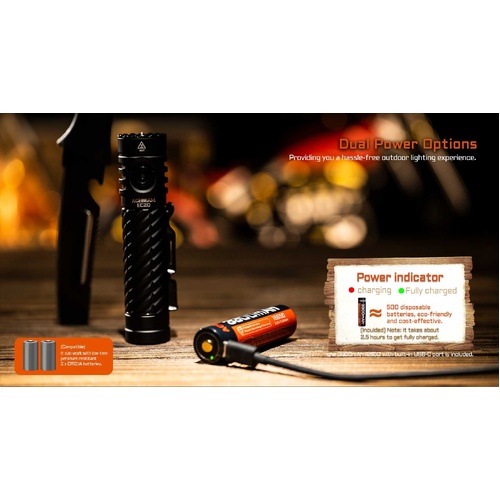

• Dual power options, it can be powered by one 18650 or two CR123A batteries
• Magnetic tail stand for versatile lighting
• High strength and impact-resistant HAIII hard-anodized anti-abrasive and corrosion-resistant finish

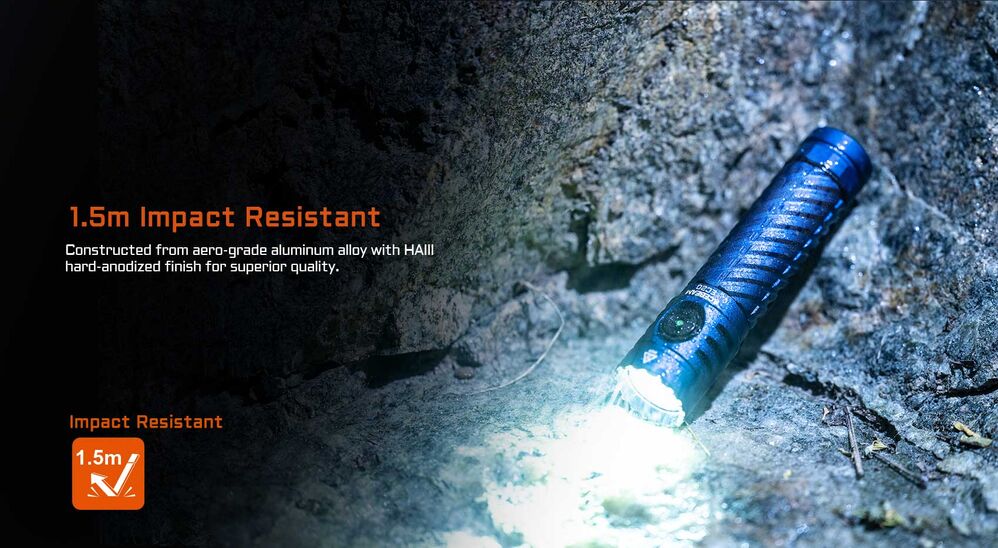

• All metal body (AL6061-T6 high-quality aluminum alloy) can withstand 1.5-meter drop test

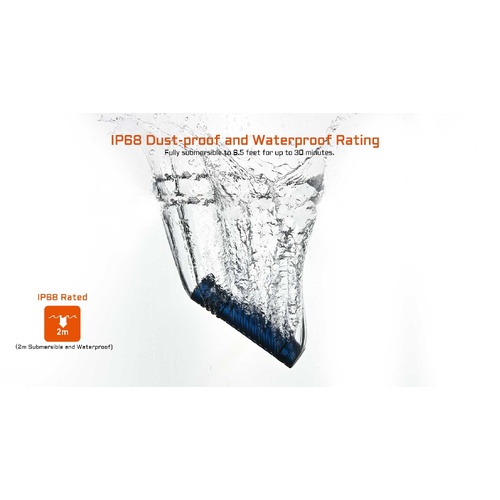

• IP68 rated, provides effective protection against dust, and can fully submersible to 2 meters / 6.5 feet for up to 30 minutes
• Ideal for exploration, patrol, dog walking, fishing, camping, night reading, and more

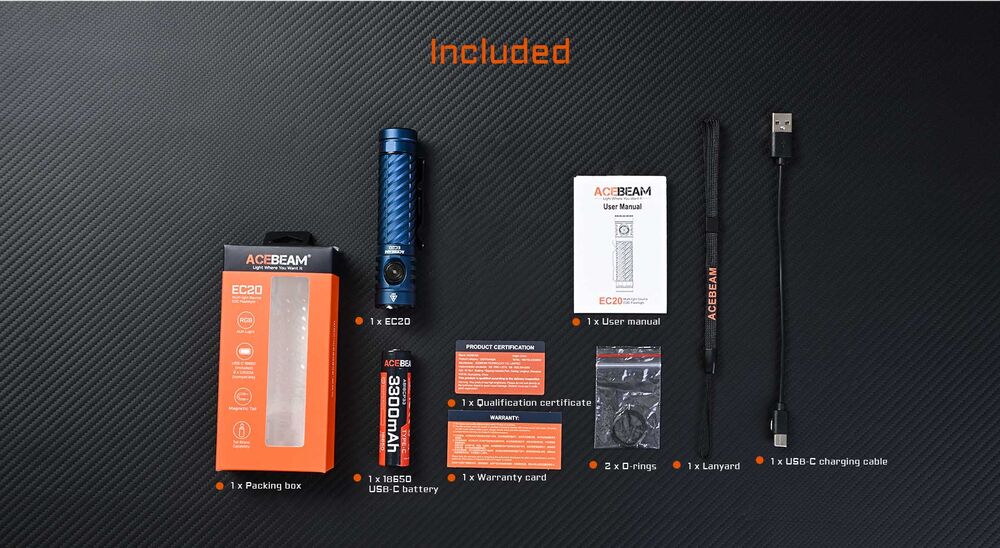

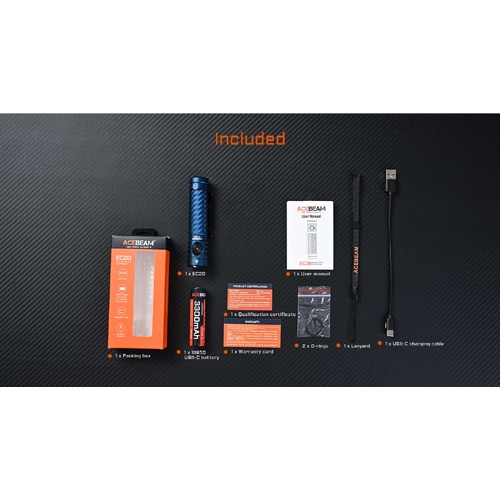

BATTERIES

• Including: One high-capacity 18650 battery pack with built-in USBC port
• Compatible: 2 x CR123A non-rechargeable batteries

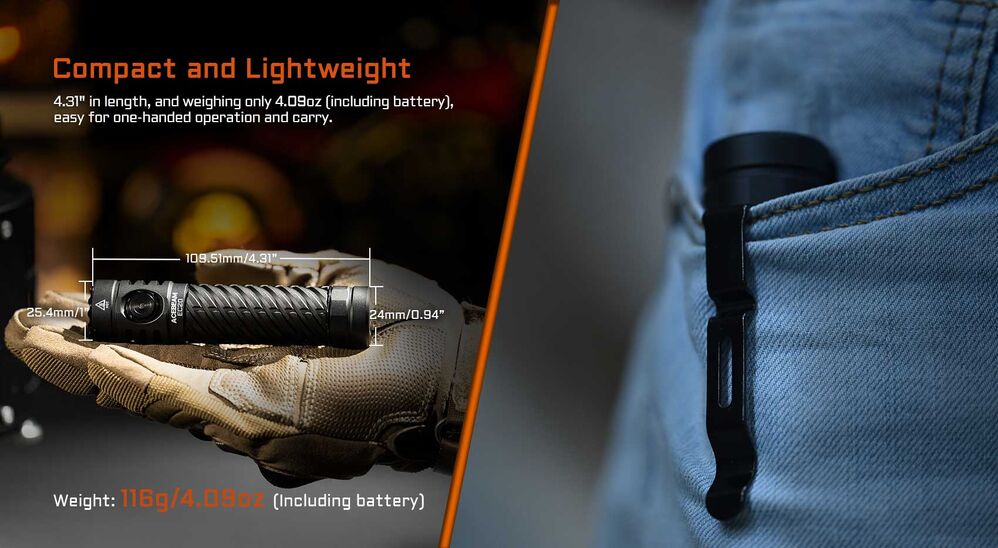

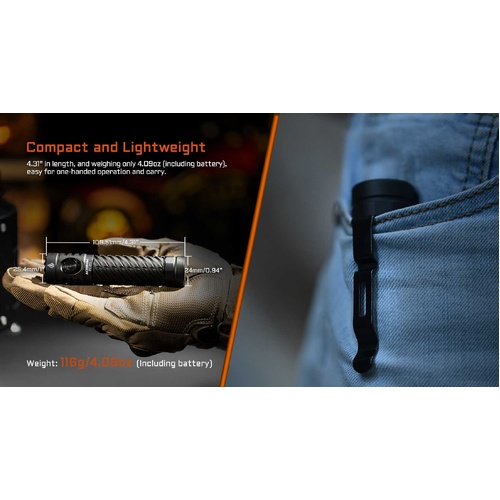

SIZE

• Length: 109.51mm/4.31”
• Head dia.: 25.4mm/1”
• Tail dia.: 24mm/0.94”
• Weight: 116g/4.09oz   Titanium 148g/5.22oz    Stainless Steel 203g/7.15oz  (Incl. battery)

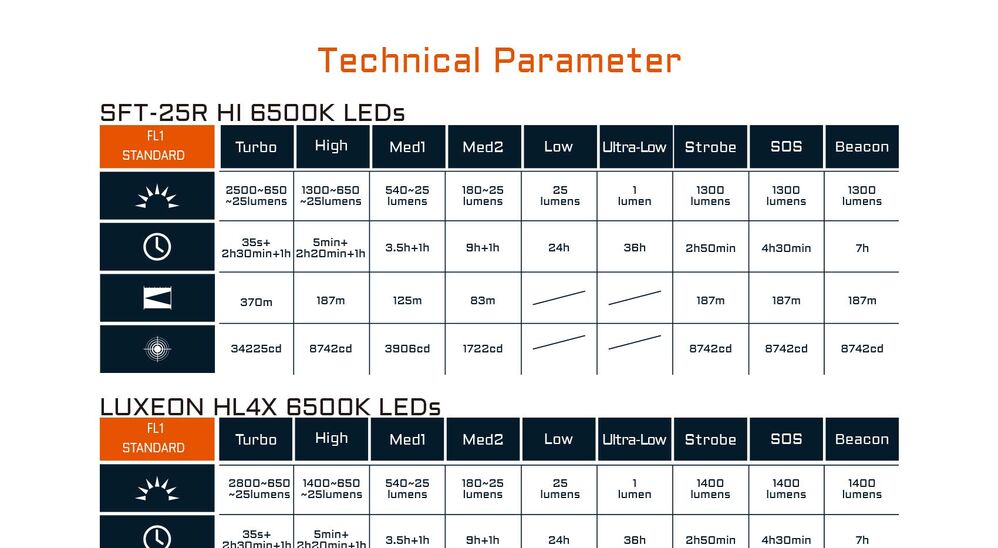

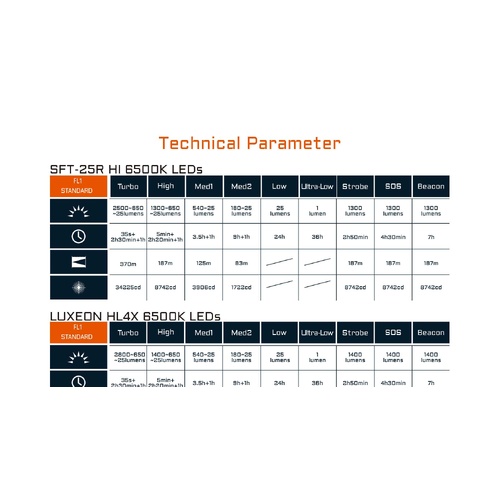

OUTPUTS

• 3 x SFT-25R HI 6500K LEDs

Ultra Low: 1 lumen;  36 hours
Low: 25 lumens;  24 hours
Med1: 180 ~ 25 lumens;  1722.25cd; 83 meters; 9 hours ~ 1 hour
Med2: 540 ~ 25 lumens;  3906.25cd; 125 meters; 3.5 hours ~ 1 hour
High: 1300 ~ 650 ~ 25 lumens; 8742.25cd; 187 meters; 5 min~ 2H20min ~ 1 hour
Turbo: 2500 ~ 650 ~ 25 lumens; 34225cd; 370meters; 35 seconds + 2H30min ~ 1 hour
Strobe: 1300 lumens; 8742.25cd; 187 meters; 2H50min
SOS: 1300 lumens; 8742.25cd; 187 meters; 4H30min
Beacon: 1300 lumens; 8742.25cd; 187 meters; 7H

Max. output: 2500 lumens
Max. beam distance: 370 meters
Max. runtime:  36hours
Peak beam intensity: 34225cd

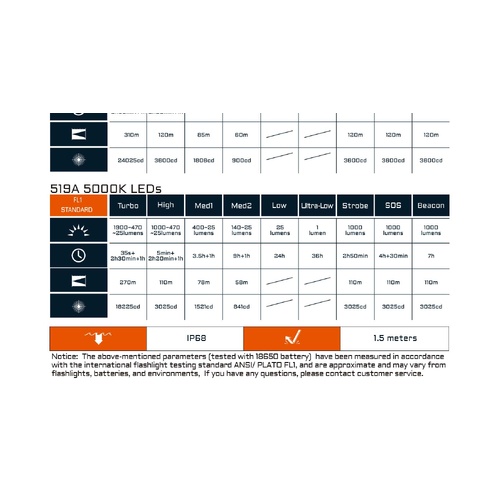

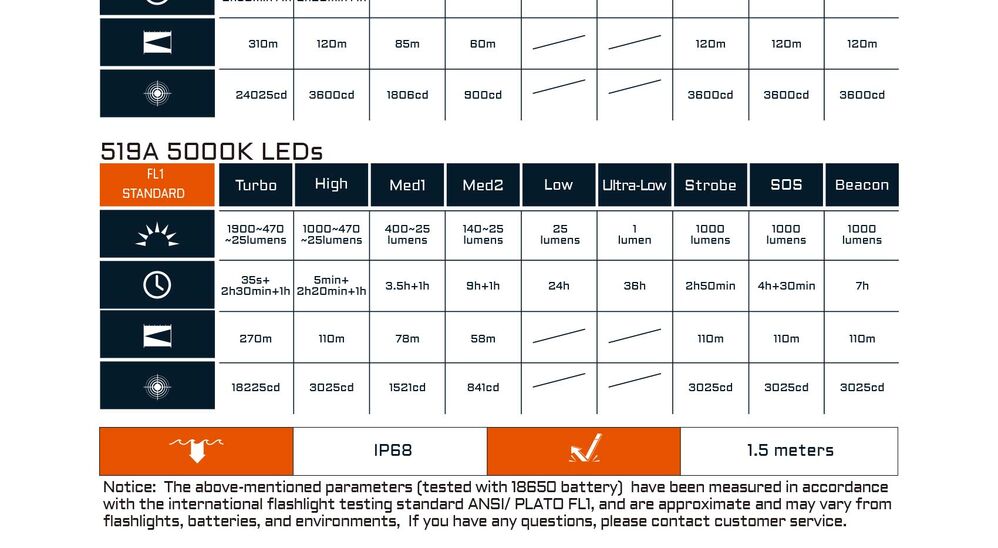

• 3 x Nichia 519A LEDs CRI > 90

Ultra Low: 1 lumen;  36 hours
Low: 25 lumens;  24 hours
Med1: 140 ~ 25 lumens;  841cd; 58 meters; 9 hours ~ 1 hour
Med2: 400 ~ 25 lumens;  1521cd; 78 meters; 3.5 hours ~ 1 hour
High: 1000 ~ 470 ~ 25 lumens; 3025cd; 110 meters; 5 min~ 2H20min ~ 1 hour
Turbo: 1900 ~ 470 ~ 25 lumens; 18225cd; 270meters; 35 seconds + 2H30min ~ 1 hour
Strobe: 1000 lumens; 3025cd; 110 meters; 2H50min
SOS: 1300 lumens; 3025cd; 110 meters; 4H30min
Beacon: 1300 lumens; 3025cd; 110 meters; 7H

Max. output: 1900 lumens
Max. beam distance: 270 meters
Max. runtime: 36hours
Peak beam intensity: 18225cd

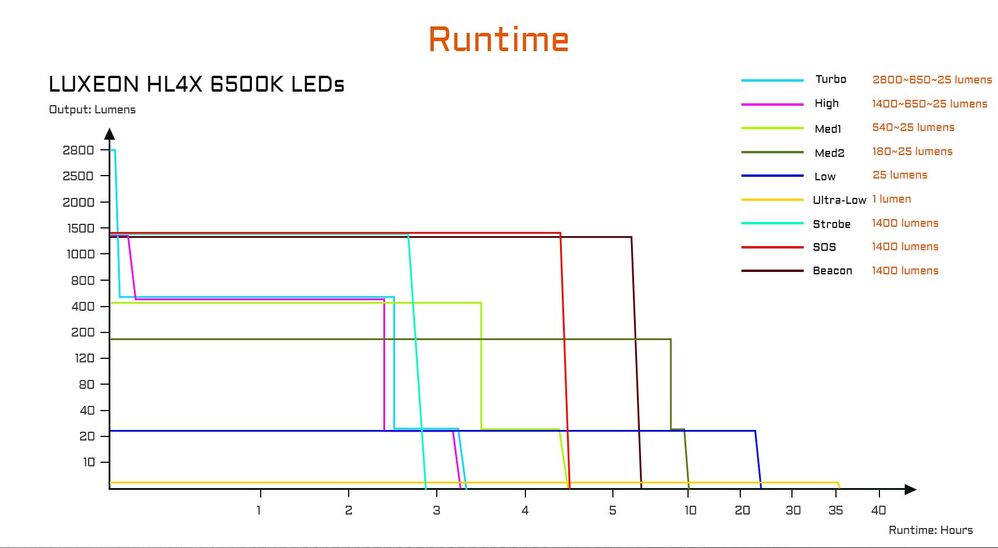

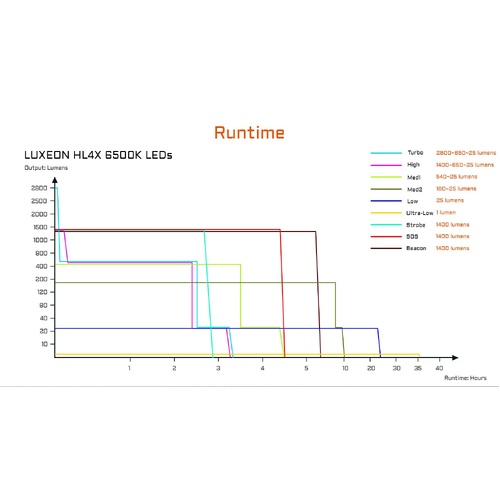

• 3 x LUXEON HL4X 6500K LEDs

Ultra Low: 1 lumen;  36 hours
Low: 25 lumens;  24 hours
Med1: 180 ~ 25 lumens;  900cd; 60meters; 9 hours ~ 1 hour
Med2: 540 ~ 25 lumens;  1806.25cd; 85 meters; 3.5 hours ~ 1 hour
High: 1400 ~ 650 ~ 25 lumens; 3600cd; 120 meters; 5 min~ 2H20min ~ 1 hour
Turbo: 2800 ~ 650 ~ 25 lumens; 24025cd; 310meters; 35 seconds + 2H30min ~ 1 hour
Strobe: 1400 lumens; 3600cd; 120 meters; 2H50min
SOS: 1400 lumens; 3600cd; 120 meters 4H30min
Beacon: 1400 lumens; 3600cd; 120 meters; 7H

Max. output: 2800 lumens
Max. beam distance: 310 meters
Max. runtime: 36hours
Peak beam intensity: 24025cd
